Orthotics
Image manufactures custom made foot orthoses for the treatment and management of many biomechanical foot and ankle conditions. We fabricate our custom-made orthoses to your prescription and specifications, using the highest quality materials. Our team of skilled technicians provides exceptional products and our quality control department ensures our accuracy.
Standard Orthotics
- 14-16mm heel cup height
- Black ETC top cover (default)
- 1mm, 2mm, 3mm carbon flex or polypropylene shell
- 1mm puff underlay (default)
- Our standard design is great for use in lace style footwear, boots and runners for both men and women. 2mm carbon flex is our default orthotic if nothing is indicated or checked off on our prescription form.

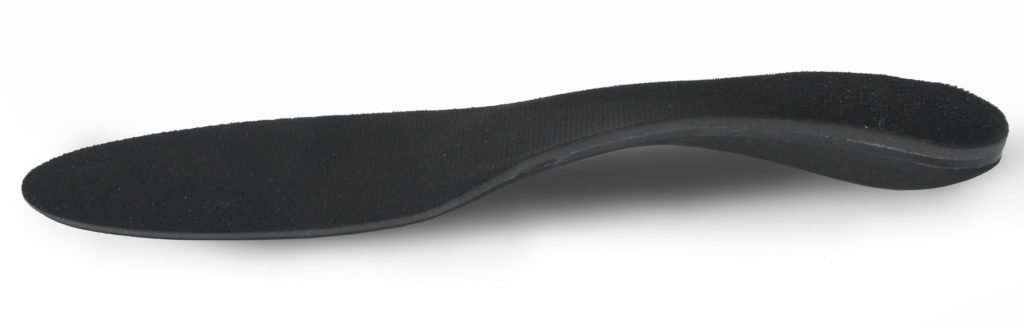

Standard Orthotics

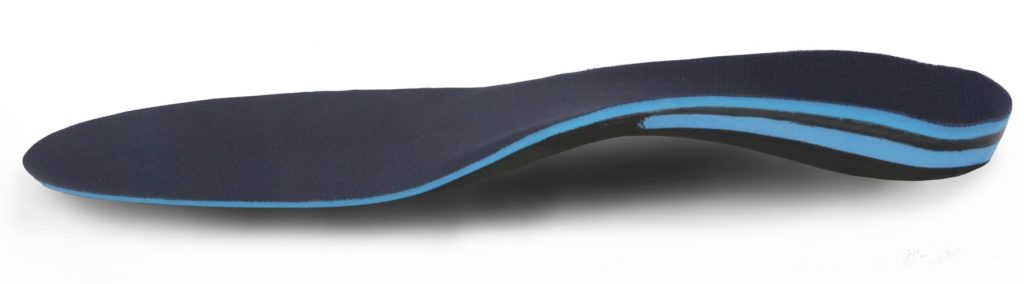

Soft Sport Orthotics
- 14-16mm heel cup height
- Blue ETC top cover (default)
- 1mm puff underlay (default)
- 1mm, 2mm, 3mm carbon flex shell or Polypropylene
- Blue poron arch fill
- Our soft sport design is a carbon flex shell design lined with blue poron arch fill, resulting in a flexible device with excellent memory. For use in lace-up style footwear, casual and running shoes.
Soft Sport Orthotics
Golf Orthotics
- 14mm heel cup height
- Green spenco top cover (default)
- 1st met cut out
- Neutral extrinsic rearfoot post
- Lateral wedge/valgus 3mm
- 2mm, 3mm carbon flex or polypropylene shell
- Our golf orthotic is designed to increase the range of motion in your swing cycle. It is also great for balance and overall motion. Ideal to submit tracing of shoe liner to ensure proper fit.

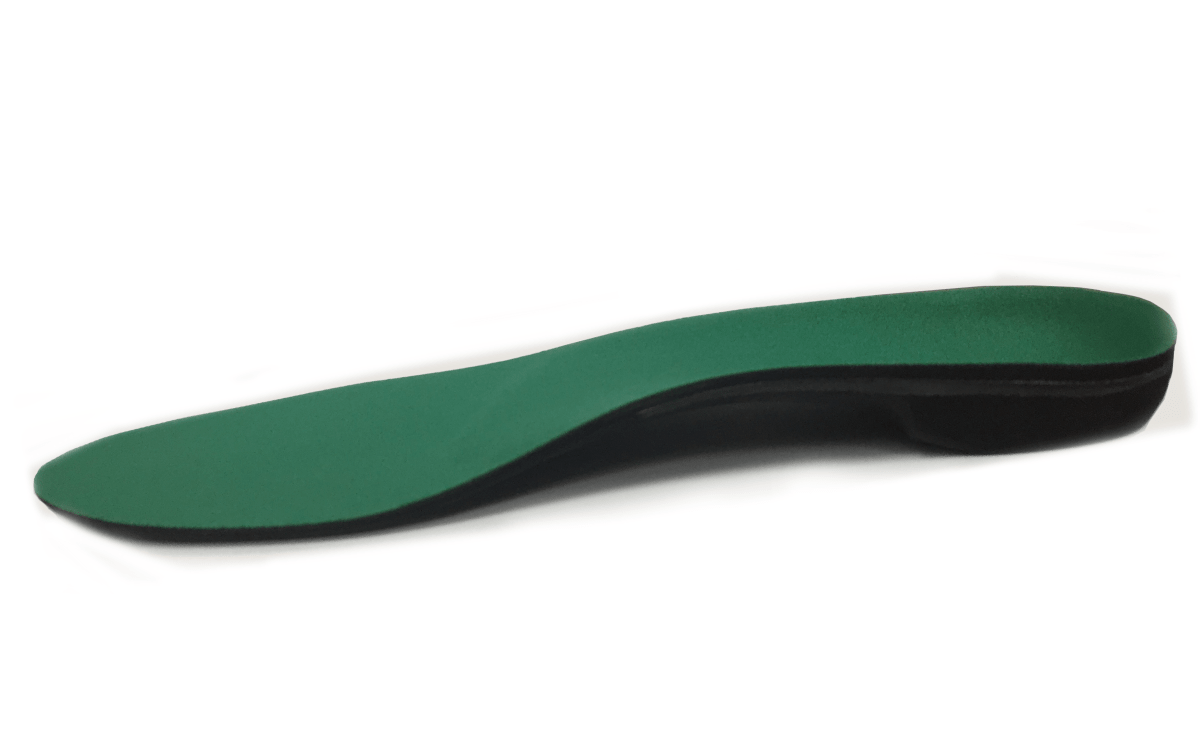

Golf Orthotics
Dress Orthotics
- 10-14mm heel cup height
- 1/16 black suede top cover (default)
- 1mm, 2mm carbon flex or polypropylene shell
- Our dress design is a slightly narrower grind with a shallow heel cup, best for slip on, flat footwear for women or loafers or dress shoes for men. Our fashion grind option is an hourglass shape with a slightly shallower heel cup, better suited for pump style shoes.

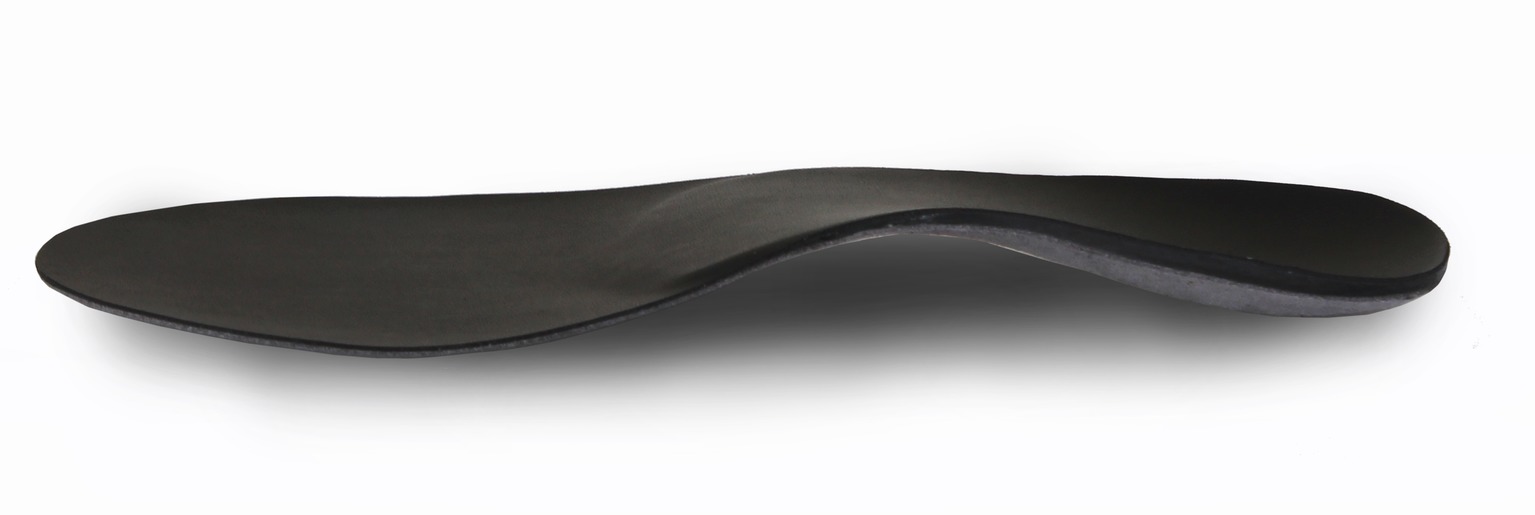

Dress Orthotics
Control Sport Orthotics
- 14-16mm heel cup height
- 1/8 Blue ETC top cover (default)
- 1mm puff undelay (default)
- 1mm, 2mm, or 3mm Carbon flex or polypropylene shell
- Dual density rearfoot posts
- Skid Plate
- Our control sport is specially designed with dual density rearfoot posting comprised of a firm EVA on the medial aspect to reduce hindfoot pronation. Lower density EVA laterally for impact shock attenuation. Reverse option for supinators to encourage shock absorption by encouraging pronation. The skid plate is added to reduce movement inside footwear.

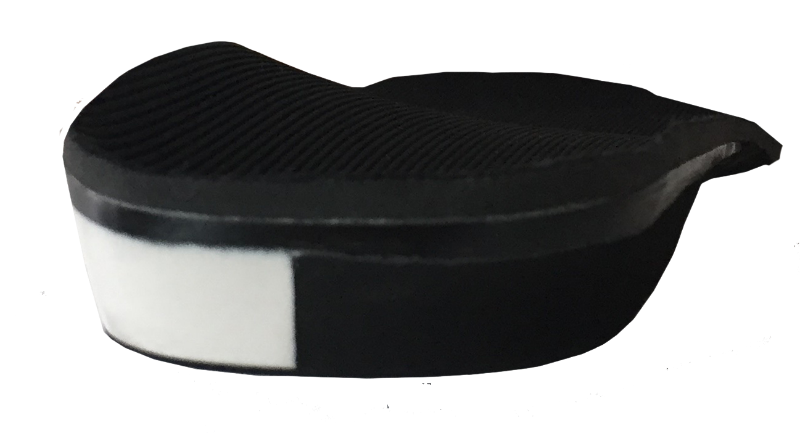

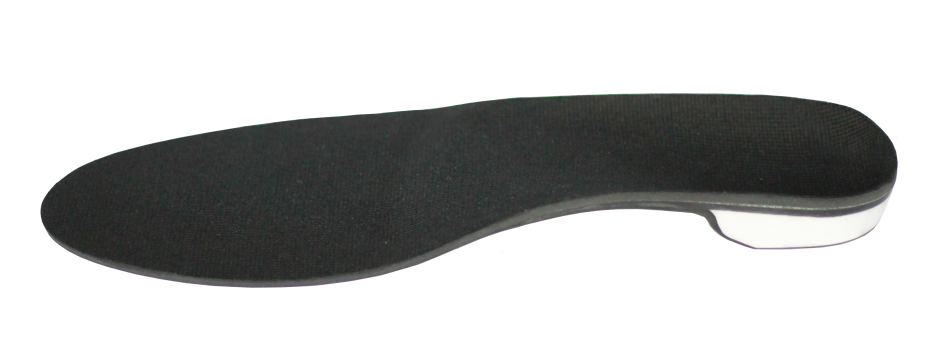

Control Sport Orthotics
Podiatric Orthotics
- 14-16mm heel cup height
- 1/8 Black microcell top cover (default)
- 1mm puff underlay(default)
- Polypropylene shell
- soft arch fill
- Our podiatric design is an excellent device to provide cushioning, support and control. For use in lace-up style footwear, casual, work boots and running shoes

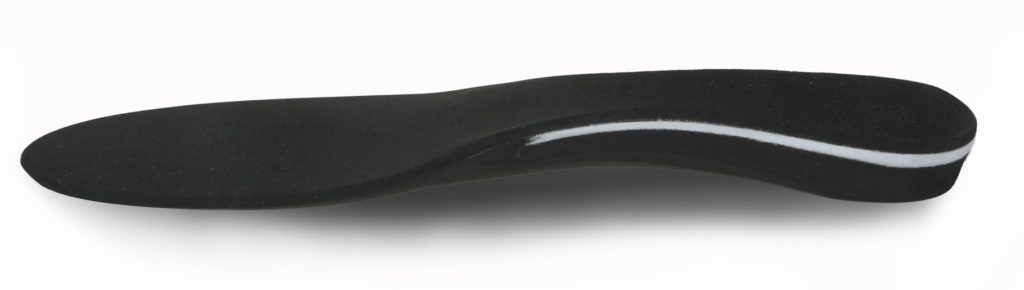

Podiatric Orthotics

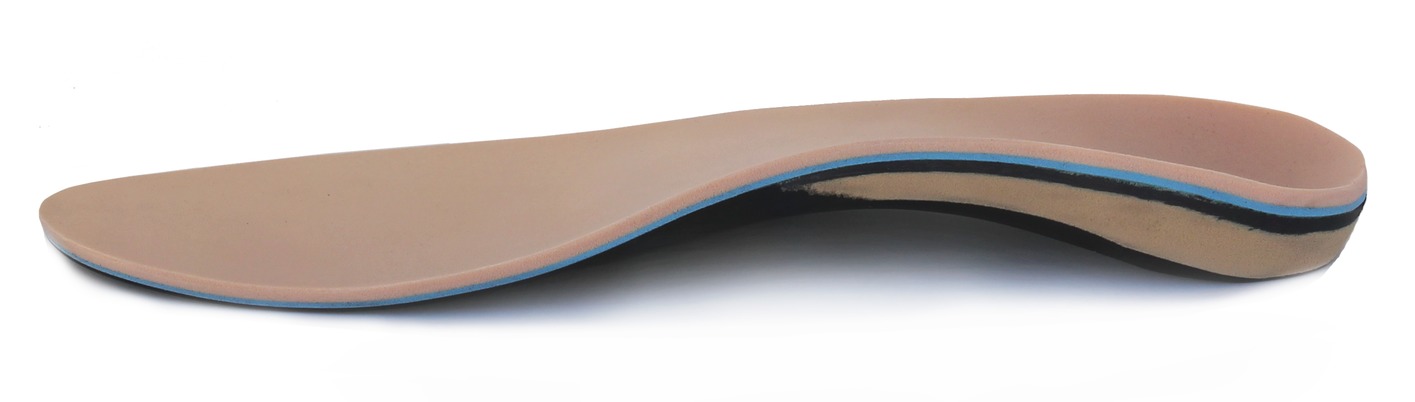

Diabetic Orthotics
- 14-16mm heel cup height
- Diabetic top cover (1/8 plastazote + 1/16 blue poron) (default)
- 1mm puff underlay (default)
- 1mm or 2mm carbon flex shell or Polypropylene
- Beige poron arch fill
- Our diabetic orthotic is designed for patients who suffer from Diabetes or Arthritis and/or are prone to open sores and friction related injuries. By incorporating the plastazote top cover, it offers a reduced friction environment, necessary for Diabetic patients. The top cover combination also provides and excellent amount of cushioning making it extremely comfortable. For use in lace-style shoes, runners and other full fitting (deeper) footwear.
Diabetic Orthotics
Gait Plate
- 16-20mm heel cup height
- Medial and lateral flanges
- Microcell top cover (default)
- Shell extended medially or laterally based on correction required
- Our gait plate orthotic is designed with medial and lateral flanges and a shell extension with option to induce out-toeing or in-toeing of patient. It is a firm and rigid device to aggressively control the whole foot.

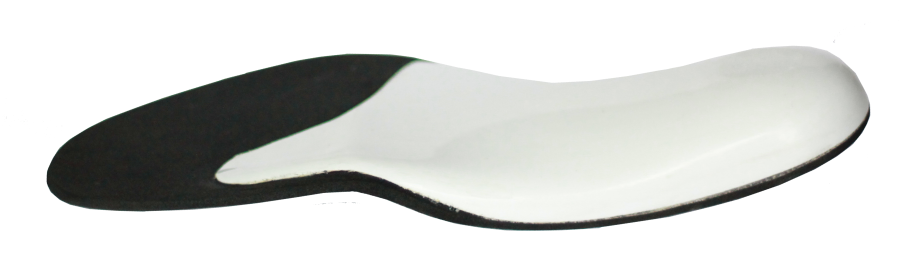

Induce Intoeing

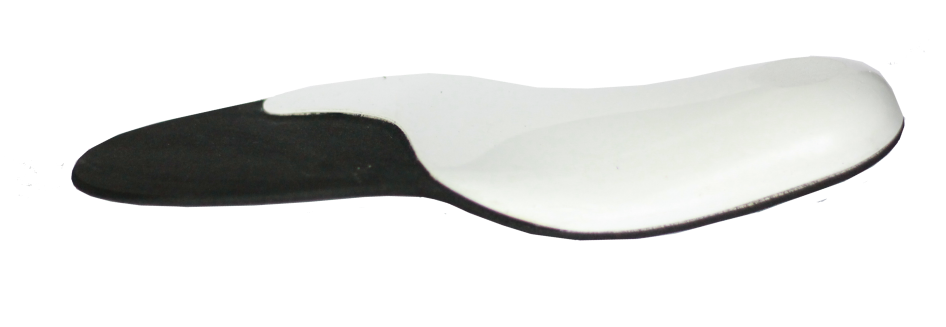

Induce Outoeing

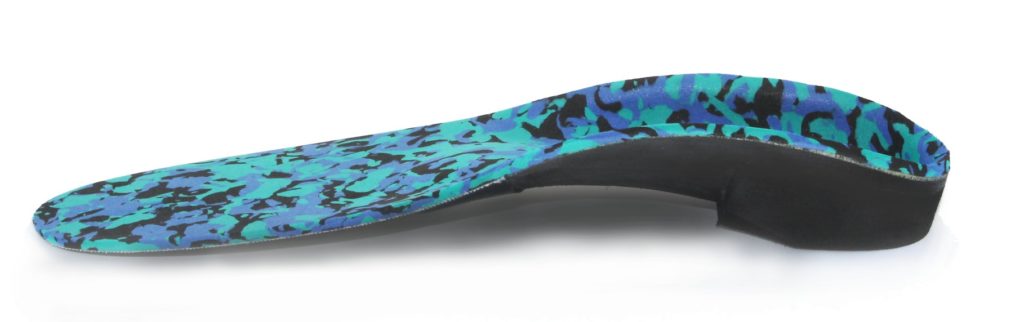

UCBL Orthotics
- 16-20mm heel cup height
- Blue/green, pick/purple or black microcell topcover (depending on age and gender) (default)
- 1mm puff underlay (default)
- 1mm, 2mm, 3mm carbon flex or polypropylene shell
- Medial and lateral shell flanges
- Neutral extrinsic rearfoot post
- Our UCBL orthotic is designed to offer an increased level of control and support. For use in lace-style footwear such as runners. Typically indicated for children with flexible flat feet or patients with posterior tibial tendon dysfunction.

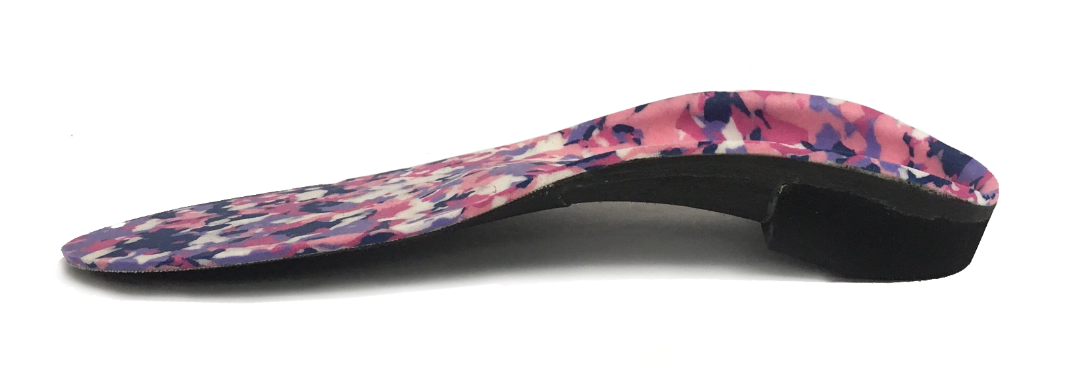

UCBL Orthotics
